Mining Operations at Mount Mica & Orchard Pit Mines, Oxford County, Maine.

Coromoto Minerals Mining Operations at Mount Mica,
March-June, 2008

Finally March(2008) arrives and we can begin preparing the mine for a new season. Having been away much of January and February, I was shocked to see the condition of the mine… but not surprised.  Yet again the message in the adage ‘an ounce of prevention is worth a pound of cure’ has received short shrift. It seems other ounce wise preventions have priority. Hence, the mining season starts with pounds of rehabilitation. Ice has built up against the storage container doors that have to be chipped away. This basic operation takes hours. The outside de-watering hoses are encapsulated under more than a foot of ice and look like some wooly mammoth in a Discovery Channel spectacular. The underground workings are filled to the portal and ice covers all that.  More than two days was spent just getting ready to pump water. Perhaps we should just wait until June while nature  undoes it’s winter labors. We, the miners, in the meantime can kick back giggling deep thoughts and watching clouds drift to the ceiling…. enough of this carping from ‘management

After the needful  is done we finally get back to exploring the area that produced the tourmaline now dubbed ‘Big Blue’. In the back of our mind though is the worry that our underground mining has brought us very close to the upper water filled pit. The  upper pit was started by Loren Merrill  and Oliver Stone in 1891 over a hundred years ago.

From The History of Mount Mica written by A. O. Hamlin:

In 1891 Loren Merrill and Stone examined the surface of the ledge to the eastward of the pit, with the view of an exploration if a close investigation warranted the expenditure of time and money. About forty feet to the eastward of the pit some Cleavelandite was visible, with black tourmaline and smoky quartz, the combination of which was favorable to the occurrence of tourmaline deposits ; and, moreover, this spot was the identical place where Mr. Hamlin found the first specimen. So the young mineralogists resolved to explore the ledge at this part, and almost the first blast revealed the existence of extensive deposits which had long been unsuspected by the many explorers who had examined the ledge for more than half a century.

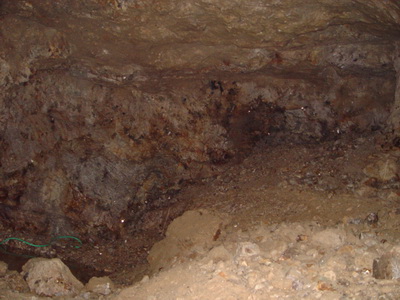

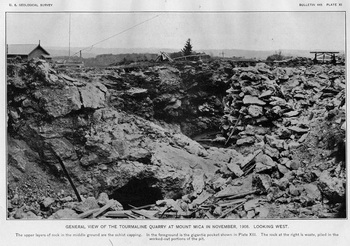

Merrill and Stone's new pit was deepened and extended first by  Frank Perham and then Plumbago Mining.  Frank told us that Merrill must have been suitably impressed by the mineralization as he had even cribbed the dump such that mining could continue along the steepening dip, no small task.  The cribbing was intended to hold back the dump from the working face in order for the mining to be conducted in the narrow gap between the working face and the reinforced dump. In the image Merrill's pocket of 1903 is visible as well as pile of wood that once formed the cribbing.  According to Frank, when he mined at Mount Mica in the 60’s, much of the cribbing was still in place. From underground we too could attest to the both the steep dip and promising mineralization. The dip was so steep that in order to work the pegmatite underground we had to establish two parallel working levels, one higher than the other.  In the images below the sharp dip and parallel levels are visible. A close up of the lower left side shows the blocky feldspar and masses of lepidolite.  The underground scenes  are only 25' into the hill from Merrill's pocket

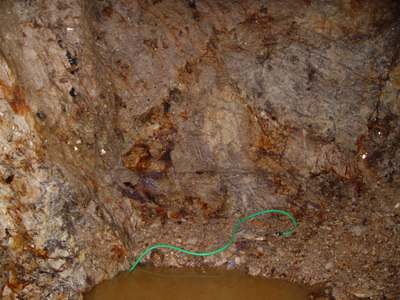

The steep dip requires us to mine on two levels

The mineralization continues to look promising

As we mined I tried to keep our map of the underground workings updated and accurate. (See the map at the bottom of the page).  This task was not a simple as it seems. Our rudimentary methods involve using a compass and a tape. Though the tape was accurate, the compass readings were subject to 10+ degrees of error. This implied a possible 25’ of uncertainty for each 100’. Fortunately we had several holes drilled from the surface into the underground workings that provided reference points. So ,with this potential magnitude of error as we approached the upper water filled pit, our concerns increased. Finally, to help establish our location underground, we tried to drill to the outside at a point comfortably above (we hoped) the water level of the pit outside. To our surprise, when the hole broke through to the outside there was only 6’ of pegmatite between us and daylight. This was uncomfortably close making the wall quite thin and calling into question the structural integrity of the face. There had been extensive blasting done on the other side of the wall in the upper pit. The compromise to the rock from the blasting was an unknown. Though we were closer to the outside than our mapping predicted, we did breach outside relatively close to where our map showed. In addition, we were just feet from the Merrill Pocket. It appears our gem pocket of September, 6-07, was part of the enriched mineralization that produced Merrill’s big find. Though 6-07 produced more than 4 kgs of gem crystals, Merrill’s pocket was reported not to be a gem producer. However, it did produce the largest tourmaline found at Mount Mica to that time. This find has since exceeded by (2) of the tourmalines found in the November pocket of 2004 (28-04).

Now that we had determined we where uncomfortably close to the upper pit, we needed to take care how we mined further in this area. Caution would require us to turn our drift to run parallel to the outside with a small bias to the inside. This would increase the wall thickness as we progressed . So, with this in mind , we turned our mining more westerly and extracted the little we could take on the upper level of our advance. We also explored to the northeast. This brought us within a few feet of the underground effort put in by Plumbago Mining in the 1970’s. Here too the mineralization looked quite promising but there was little remaining to mine at the far end of this advance. We did have the option to retreat back to the SE and mine down dip from the Plumbago underground workings.   We'll do that eventually or perhaps the next generation will .

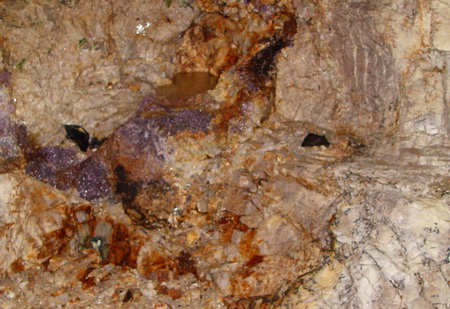

As we gingerly planed the walls we found a number of small spaces similar to the pockets we found in January. Each was enclosed in microcline feldspar that became increasingly more blocky and loose as the margin of the cavity was reached. The image to the left shows one of the pockets (water puddle) and the surrounding mineralization. Note the aurora of the pocket in the surrounding feldspar. The banding of the feldspar, which we have dubbed 'zebra spar', is one of indicators on  our ever expanding  list of  'never miss dead gievawasy'' of a nearby space.

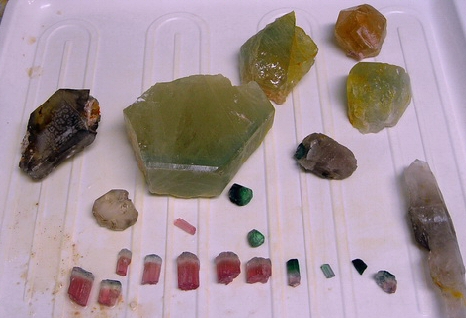

In November, while I was away in Germany, Richard and Mike O'Neill had explored an area just on the other side of the wall to the Merrill room. Here they found a sizeable mass of lepidolite. However, the steep dip hindered their work . In April we again attempted to access this area as we mined to the northwest. This placed us on the extreme low side of the our two level area shown above.  The intensive but slow build up of oxidation stains of the walls on the other side in the Merrill Room was a indication this area was good.   This staining, probably iron and manganese oxides,  develops in patches on the up dip walls and is related to the mineralization up dip.  Leached out, the once anoxic solutions oxidize to dark stains.  On May 12 pocket 5 of '08 we discovered just behind one of these stained areas. Probably the best piece from this space was a tabular green/blue beryl. Once exposed to light, the green faded quickly leaving the crystal decidedly blue.  The were several nice tourmaline sections as well.  The photo above shows the main pieces fom the find. When found the beryl was a green-yellow color. The image at the left, taken by Henry Minot, is of the same crystal. Its final blue color evident.

MSHA outs us

Our happy little world of underground adventure was 'rocked' when on April 18, 2008 I received the following email:

Mr Freeman:

I would like to meet with you to discuss the activities at your Mount Mica Mine. I have unsuccessfully attempted to contact you at the two numbers that I have on record. Please contact me at the number below or respond by e-mail.

Take care,

Assistant District Manager

Northest District

Mine Health and Safety Administration.

Like Valerie Plame, we'd been outed. The 'Federales' were wise to us. Actually, I had raised my hand  'excuse me fashion' some years ago. At that time we had been fortunately classified a 'hobby mine' and filed away at the back of some drawer. We were opertaing open cast (pit) at that time. Apparently a picture in Cross Jeweler's 2007 Thanksgiving supplement in the Portland, Maine  newspapers showing the portal of of our underground workings was revealed exposé fashion at some MSHA regional pow-pow. The reaction was quick. ( Secretly obtained  audio of the raucous reaction at the meeting :-)  Click to play.

This text will be replaced by the flash music player.

The blind eye had now been restored 20-20+ and our file was dusted off prompting the email above. MSHA was coming for a CAV (courtesy assessment visit). I feared the bulldozers would be idling just out of sight post the CAV... West Bank style. As it turned out, the visit went well. With the help of the MSHA Small Mines Office we began to get our compliance house in order.  We had been following the rules spelled out in CFR30 Part 57 (for those interested --> Title 30, Code of Federal Regulations, Part 57 Health and Safety Standards Underground Metal Non-Metal Mines) to the degree that matched the scale of our operation. Now, theoretically, we'd have to tow the same line as Phelps Dodge or Barrick Resources. The first major requirement we faced was to cut a secondary escape way. Since we were very near the outside already, this was not as major of a task as it could have been.  An initially daunting array of other requirements had to be met:  Training,training plans, HazComm, SCSR (self-contained self rescuer) certified  training, mine gases, ventilation plans, diesel particulate, radon gas levels, ground control, daily inspections, hearing conservation, travel ways, reporting of hours, evacuation plans, alternate mine rescue..... One by one we chewed out way through the requirements.  Needless to say this effort tapped into the time reserved for desk work.  Since our CAV we've had at least 10 inspections and have interacted with at least that many DOL employees. On balance, our mine is safer than before all of this started.


Back to the digging story:

Encouraged by May 5-08 find, we decided to advance again westward along this horizon. Though we did not detect anything while drilling the burn, clearing out the muck after the shot revealed that the shot itself  peeled into some kind of space. The potential of a substantial cavity was re-enforced by a steady flow of water that emanated from an area of fractured quartz at the back of the burn.

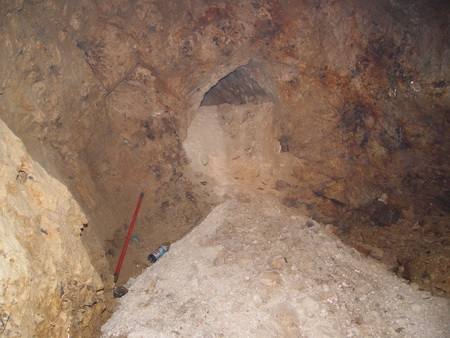

  The May 16 burn

  Opening at the back of the burn showing the water

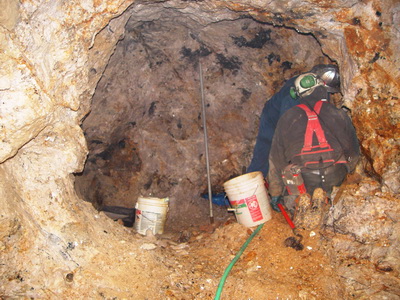

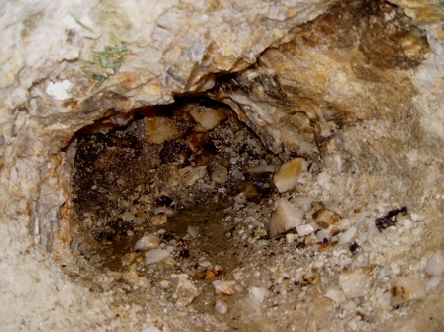

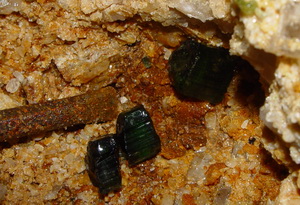

Over the next several days we expanded our burn. This effort revealed more small cavities both to the left and right of the original opening at the back. In this image Richard and Frank examine a small space on the right inside the expanded advance. The main chamber opening is behind the bucket and is stuffed closed with a blue tarp. The right hand space did not prove to be productive so our attentions returned to the cavity at the back (MMP7-08). Though the space contained plenty of color in the form tourmaline chips, there was only one tourmaline and it was of minor note.  The image to the left shows the tourmaline as it appeared in pocket after a little gentle excavation with our  garden house.  Once dug out, the space was more than a meter wide and at meter and a half to the back. All around it were indications of more spaces. So the digging in this area continued to at least hint at more pockets. Whether or not they'd produce 'revenue rock' was the open question.

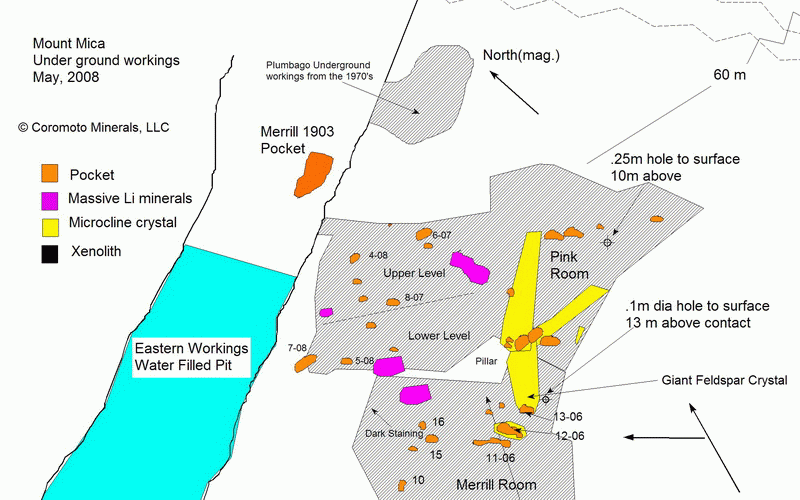

Sketch showing the Upper and Lower workings May 2008
